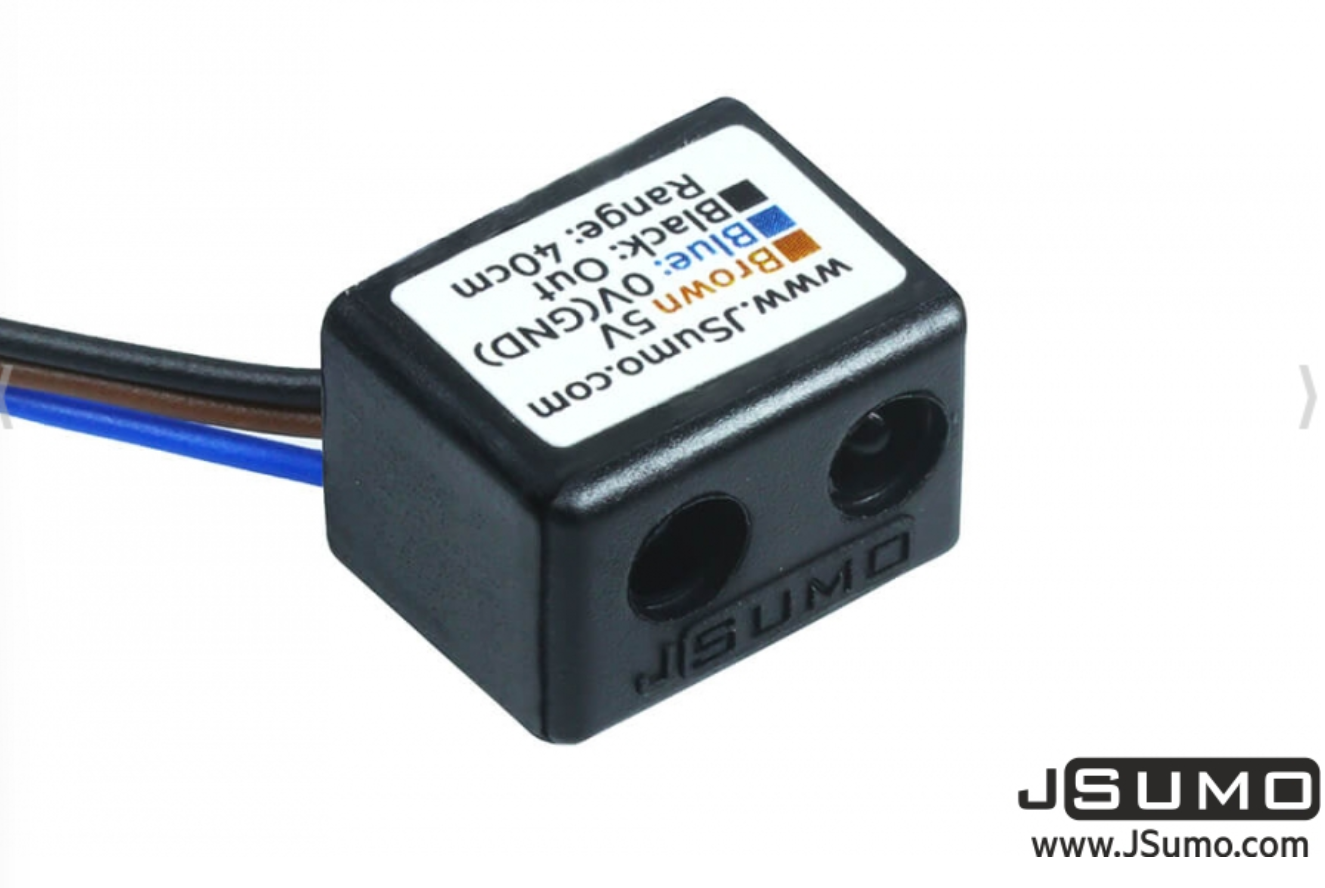

JSUMO JS40F Mini Digital IR Sensor

NOTE: SENSOR HAS BEEN UPDATED WITH DETACHABLE CABLE/CONNECTOR which makes it longer by roughly 5mm, Estimated 17.7mm by 16.5mm by 12.6mm. Official picture and measurements updates are in progress. In the meantime, send me a message via email lunoxrobotics@gmail.com if you have any questions about this product or would like a picture of the new sensor

Digital IR Distance sensor for mini sumo and small robot projects.

Detects objects from up to 40 cm away

Works between 3.3V - 5V

Draws 15mA at 5V

Reverse polarity protection between power and gnd

Red LED status indicator in the back

Comes with 15cm stranded wire

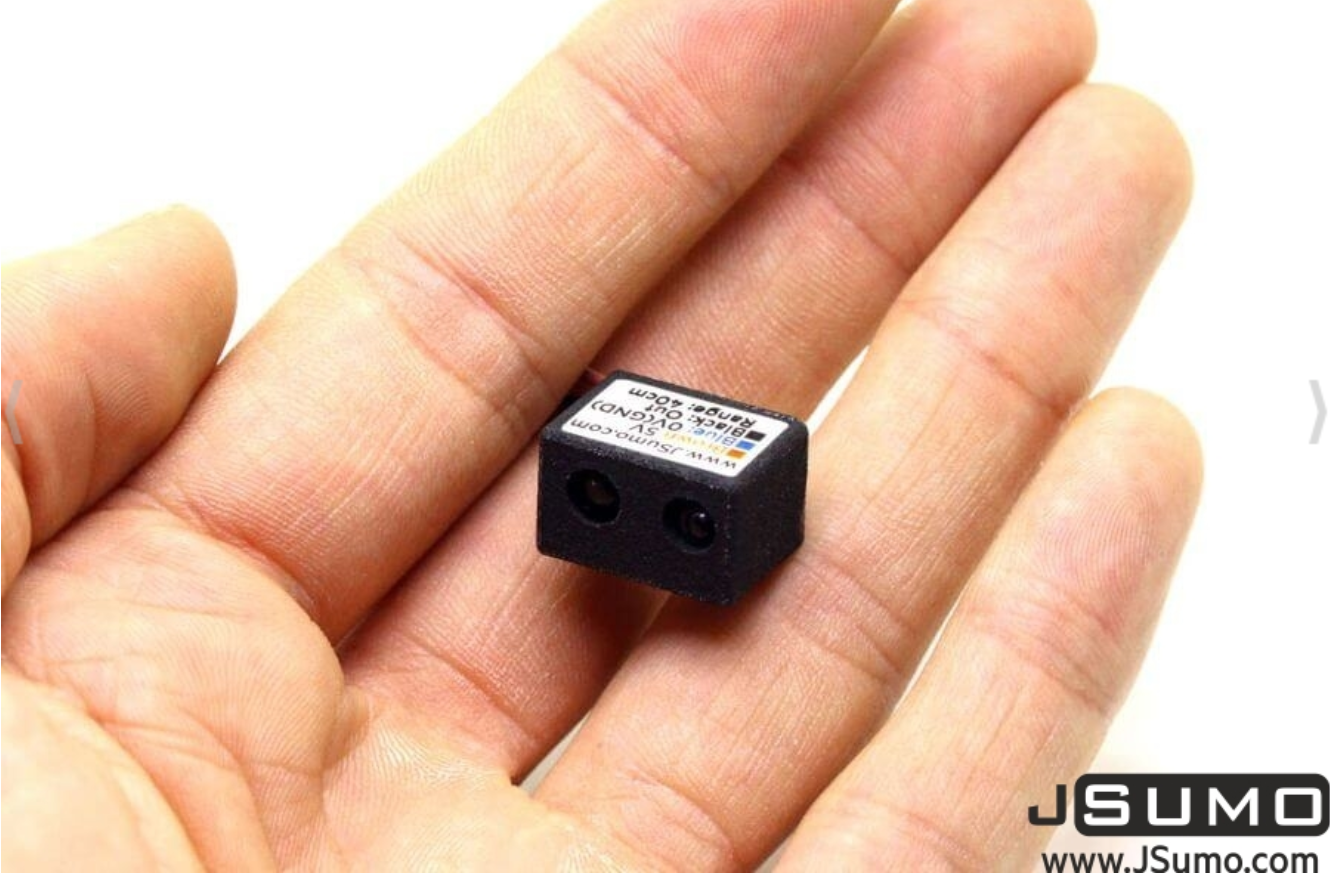

17.7mm x 11.5mm x 12.6mm

4 grams

Cable Mapping:

• Brown: 5V
• Blue: GND
• Black: Signal Out
