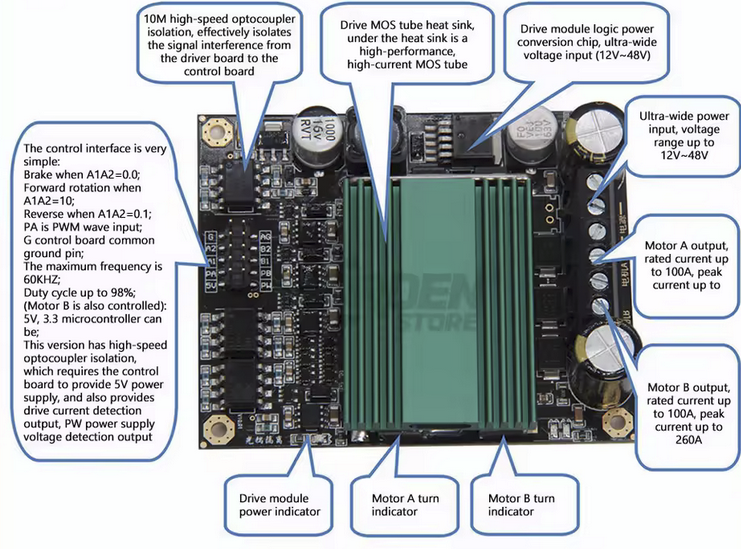

High-current dual H-bridge driver for mega sumo (3kg class) brushed drivetrains. Sized for larger brushed motors where drive current at stall exceeds what small breakout-board drivers can handle.
Voltage range
12–48V
Continuous current
100A per channel
Peak current
200A per channel
Channels
2 (dual H-bridge)

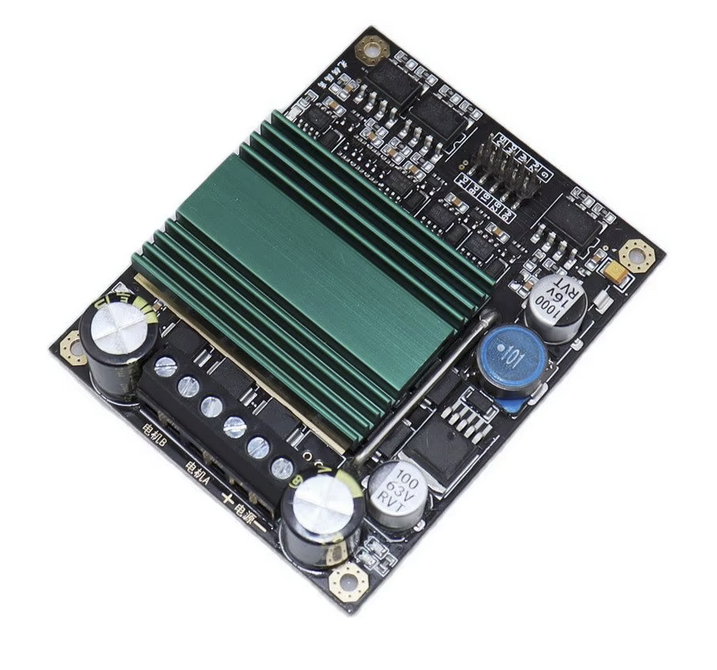

Thermal management matters here: peak current ratings on any high-power H-bridge assume adequate heatsinking and short-duration pulses, not sustained stall current — a mega sumo pushing match is exactly the sustained-stall scenario that stresses a driver hardest. Plan for a heatsink and, ideally, forced airflow if your bot regularly holds full-power stalls for several seconds.
